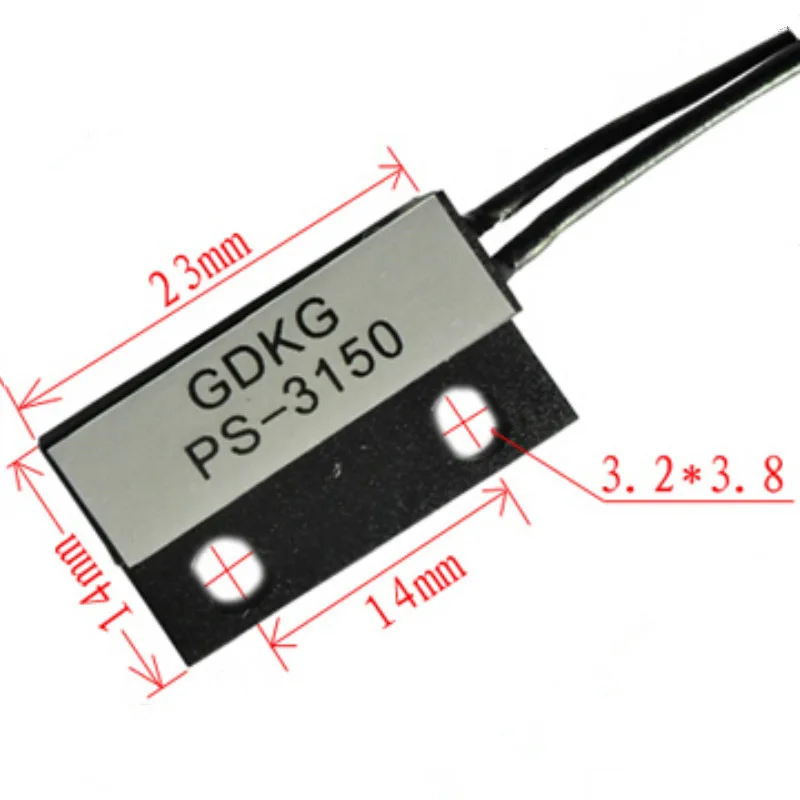

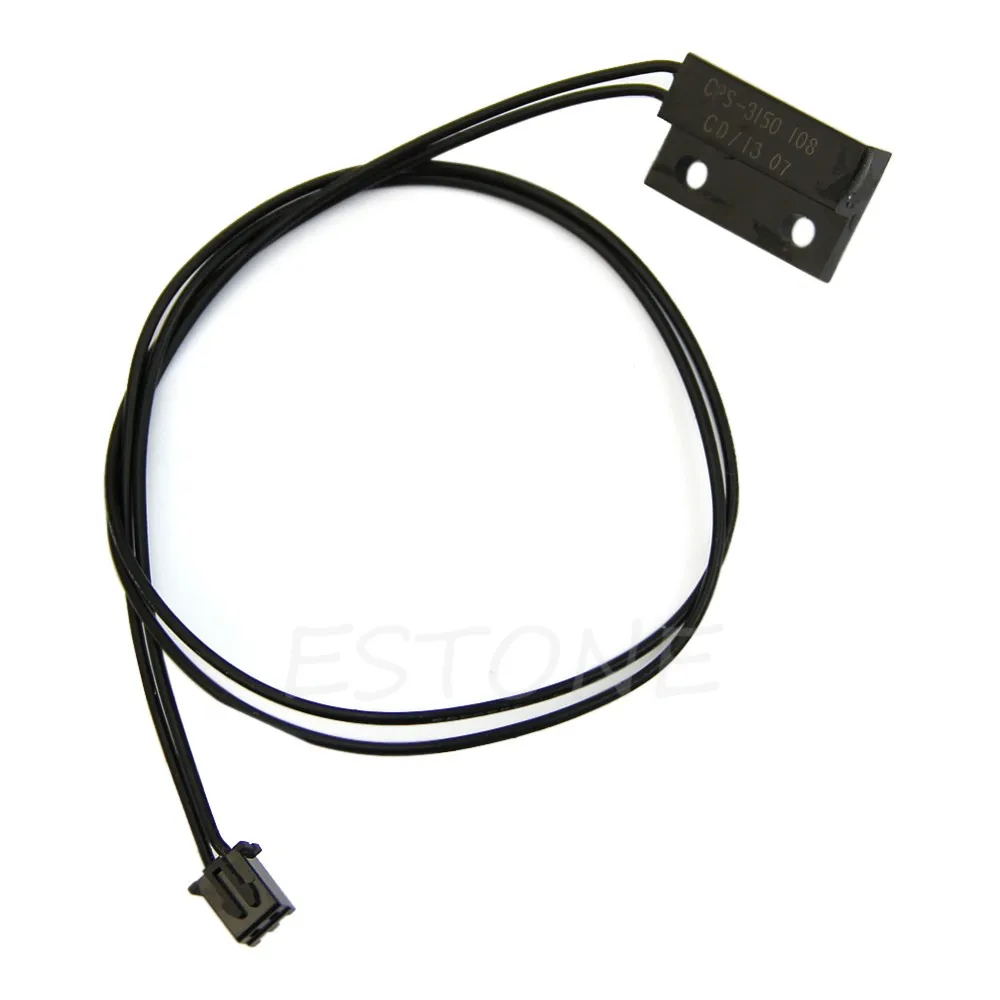

PS-3150 Normally Open Proximity Magnetic Sensor For Door Windows Reed Switch Perfect Alarm DIY Protection
PS-3150 Normally Open Proximity Magnetic Sensor For Door Windows Reed Switch Perfect Alarm DIY Protection
PS-3150 Normally Open Proximity Magnetic Sensor For Door Windows Reed Switch Perfect Alarm DIY Protection

PS-3150 Normally Open Proximity Magnetic Sensor For Door Windows Reed Switch Perfect Alarm DIY Protection

Available: In Stock
Wishlist Compare
$2.99
Features
  • movement speed quickly
  • suitable for high operating frequency products
  • the contact resistance with a high anti-corrosion and wear resistance
  • long life, stable switching operation can be obtained
  • the control portion of the seal in the housing, is not affected by the external environment

Use
  • All controls can be used to detect magnetic switch: used in liquid level sensors, security alarm systems, proximity sensor, instrumentation, automotive electronics, magnetic switches, treadmills, odometer, and other control circuits

Electrical Characteristics
  • Maximum Power: 10W
  • Maximum Switching Voltage: 200V AC/DC
  • Maximum Switching Current: 0.5A AC/DC
  • Maximum Load current: 1A AC/DC
  • Contact resistance: 100M ohm
  • Contact capacitance: 0.2pF
  • Sensing distance: 1-40mm, with different magnet distance will be different
  • Wire: UL1007/AWG24 30cm

Note:
it is a normally open reed switch, when the magnet is not close, the switch inside is disconnected.

Shipping List
  • PS-3150 Normally Open Proximity Magnetic Sensor: 2pcs
ps3150 (1)ps3150 (2)
